The Hughes M2M terminal is a 3G IP Based Satellite Modem with a Semi Directional antenna. The Hughes 9502 IP satellite terminal provides a reliable connection over the Inmarsat Broadband Global Area Network (BGAN) for IP and SCADA and machine to machine  (M2M applications.  It can be applied to use in many industry sectors through it’s communication with monitoring, surveillance and automation devices.

The terminal can be used as an always on data link, or it can be powered up from sleep mode when needed. The Antenna needs to be facing the satellite within a cone of 15 degrees of the skyscape, though it will operate even if it has been partially moved or blown off its axis. The service is resilient against signal loss due to cloud cover and rain due to the frequency that it utilises. Low cost hardware, a complete system including antenna , cables and mounts is $1690 ex GST.

1. Global Coverage
2. Always on high availability IP.
3. Low Power
4. Remote firmware updates
5. Static IP addressing available
6. Lowest cost terminal including cables and bracket < $1690ex Tax.
7. Reliable Inmarsat Global satellite network.
8. Optional Secure private network
9. Easy to install and configure

Ideal for metering, environmental monitoring, pipeline monitoring, pump monitoring, farm automation, and remote mine equipment.  The exceptional low power consumption (<1 W idle) makes it perfect for solar powered sites that are far off-site.

The Hughes 9502 includes 10 meters of RF cabling, and a separately mountable 38cm x 38cm panel antenna . Any firmware update should have no charge even when performing said upgrade in the field,  Saving both time and money. Dealer pricing available.

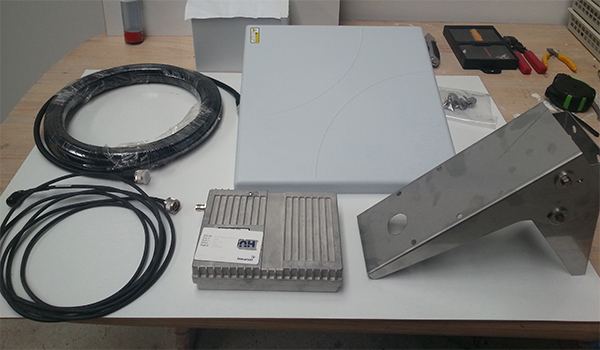

Objects that come packaged in with the hughes 9502 BGAN M2M terminal.

Extended List of Features

• No connection charge with BGAN M2M (normal BGAN charge is 100 Kbytes)
• Minimum CDRs only 1 Kbyte (normal BGAN charge is 10 Kbytes)
• No charge over-the-air modem software upgrades
• Exclusive airtime packages unique to the Hughes 9502
• Integrated IP Watchdog to ensure “always-on” network connectivity. No manual intervention required to recover from an outage
• Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
• Remote control via SMS—remote management platform for command and control to the terminal using SMS, including configuration, debugging, and access to Web interface
• Ultra-low power consumption
  • Transmit: < 20 W
  • Narrow beam w/o transmit: 3 W
  • Idle (regional beam): < 1 W
  • Off (wake on packet): < 10 mW (@ 12 Vdc)
  • Off (wake on packet): < 30 mW (@ 24 Vdc)
  • Off (GPIO control): 0 W
• Relay mode passes WAN IP address to the connected RTU
• Security enhancements with extended layers of embedded security options
• Basic installation; no PC required
• Outdoor unit (ODU) can be pole mounted
• Indoor unit (IDU) is housed inside building or the remote terminal unit (RTU)
• Built-in GPS receiver
• Interfaces
  • Ethernet connection (RJ45)
  • USB–Type B for connection to configuration PC
  • RS-232 (DB9) to external NMEA 0183-based GNSS device (e.g., GLONASS receiver)
  • TNC connection on the IDU to the external antenna
• Package Contents
  • Hughes 9502 BGAN M2M Terminal IDU
  • 10 meters RF antenna cable
  • External antenna (ODU)
• Accessories
  • Modem (IDU) strap
  • Antenna basic fixed mount kit
  • Antenna azimuth elevation bracket
  • Extended Warranty Options
